HC-Q Series
HC-Q Series
About A-Series HC-Q Series
Our Technology Help the Industry.
HCQX series I/O remote extension modules can provide customers with more choices and more topology. its widely Used In Machine Tools & Process Plant.
Nexus Automation is Authorized Distributor of HCFA In India.
HC-Q Series

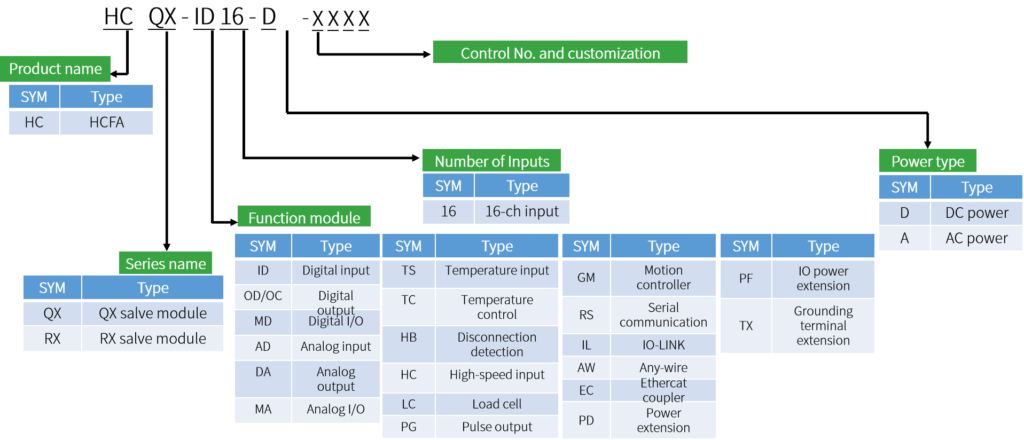

Naming Rule
Various Extension Modules
16-ch digital input module HCQX-ID16-D

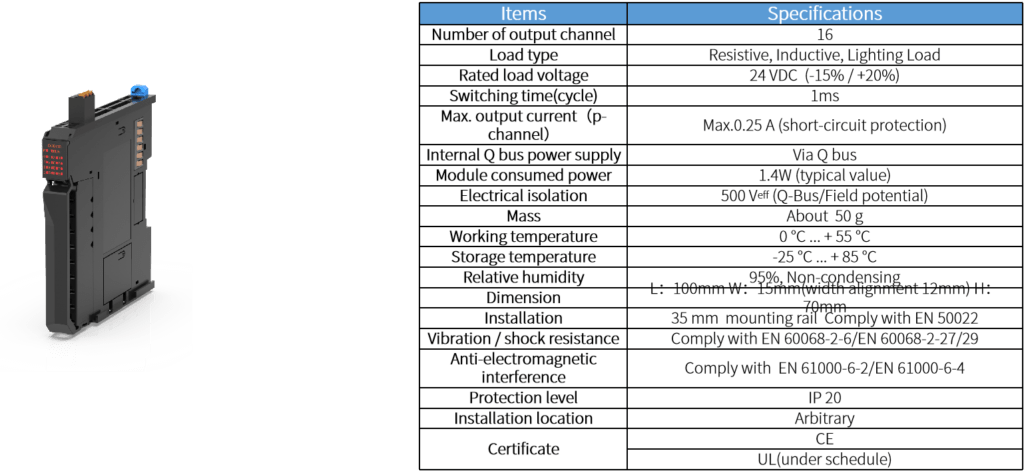

16-ch digital output module HCQX-OD16-D

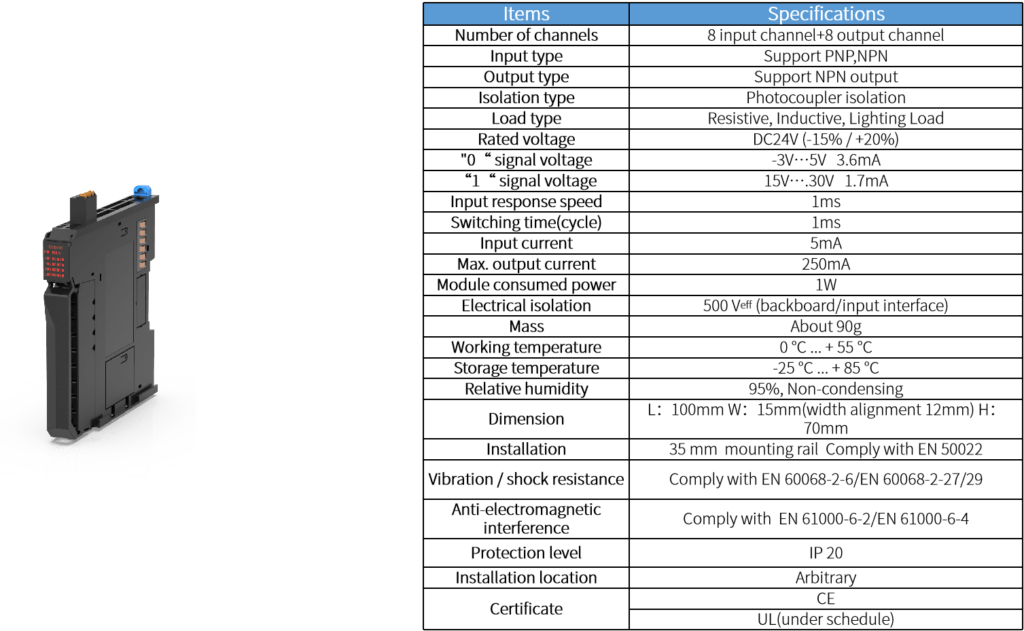

8-ch input, 8-ch output module HCQX-MD16-D

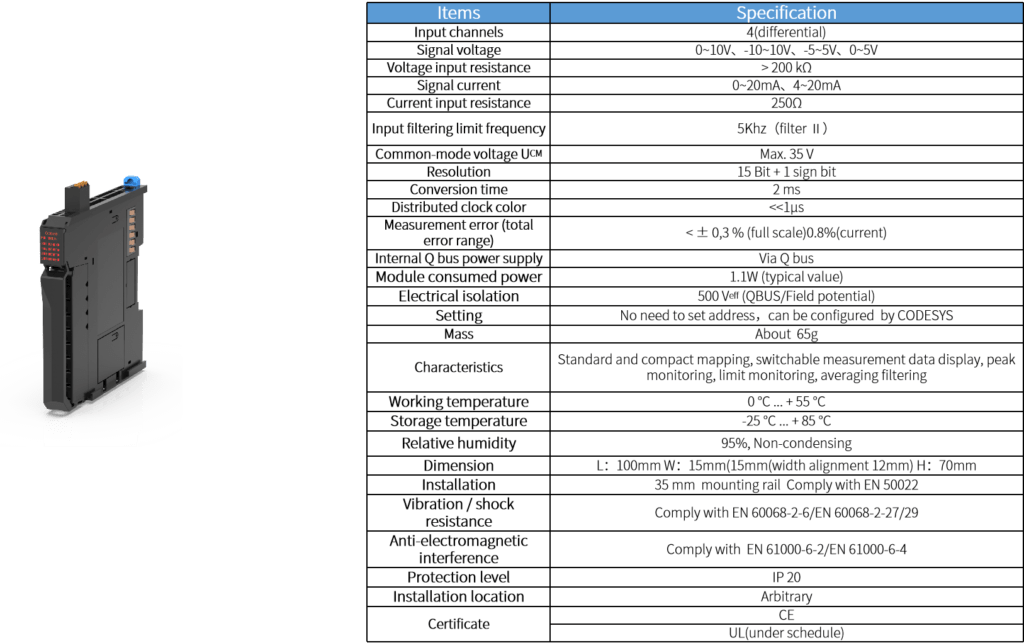

4-ch analog input module HCQX-AD04-D

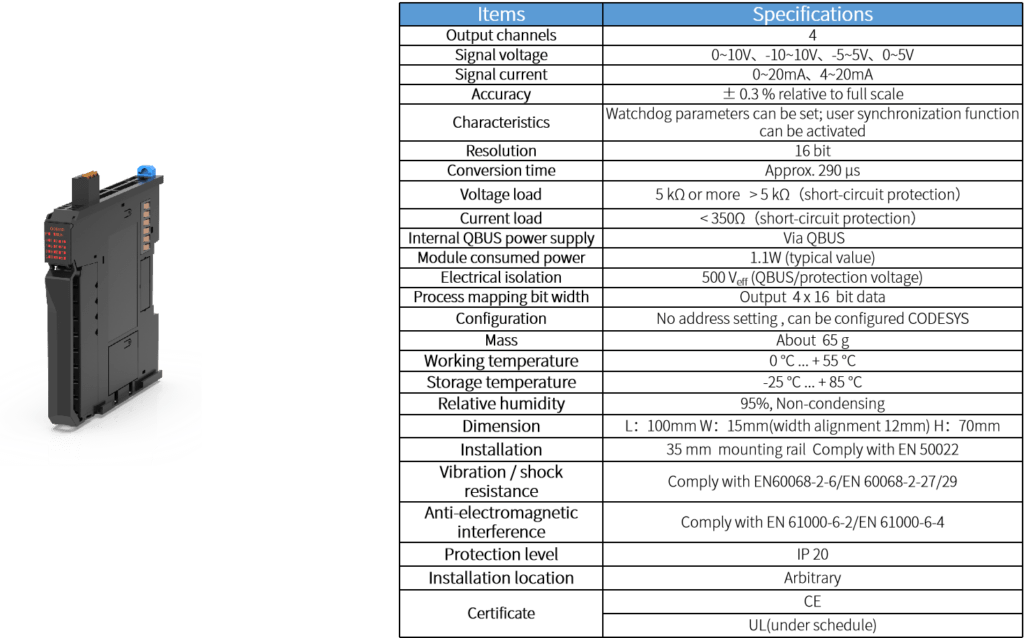

4-ch analog output module HCQX-DA04-D
Download
Name
Update Time
Catalog | 2022.12.17 |
Download
Name
Update Time
Instruction | 2020.03.31 | ||
Instruction | 2020.03.31 | ||
Instruction | 2022.04.20 | ||
Instruction | 2022.04.20 | ||
Instruction | High-speed Counter Module HW INS V1.0(TR) | 2020.03.31 | |
Instruction | 2020.03.31 |
