About A-Series PLC
Our Technology Help the Industry.
A-series PLCs are the first-generation small ones, which can achieve 10-256 points, have the ex- tension and card-shaped design architecture and high-speed pulse multi-axis motion control, which can be widely used in the OEM field, Machine Tools & Process Plant.
Nexus Automation is Authorized Distributor of HCFA In India.
A-series PLCs
HCA1P Series General Standalone Micro Control
Controllable I/O：10-34points；
Main Unit I/O：10/14/34points；
More cost-effective:- New appearance, CPU and power board design, cost performance improved by 10%；
More reliable : New vibration resistance connector, Greater transistor output 200V/ 1. 5A ;
Function improved :NPN & PNP compatible, Ethernet communication board, extension on right-side ;

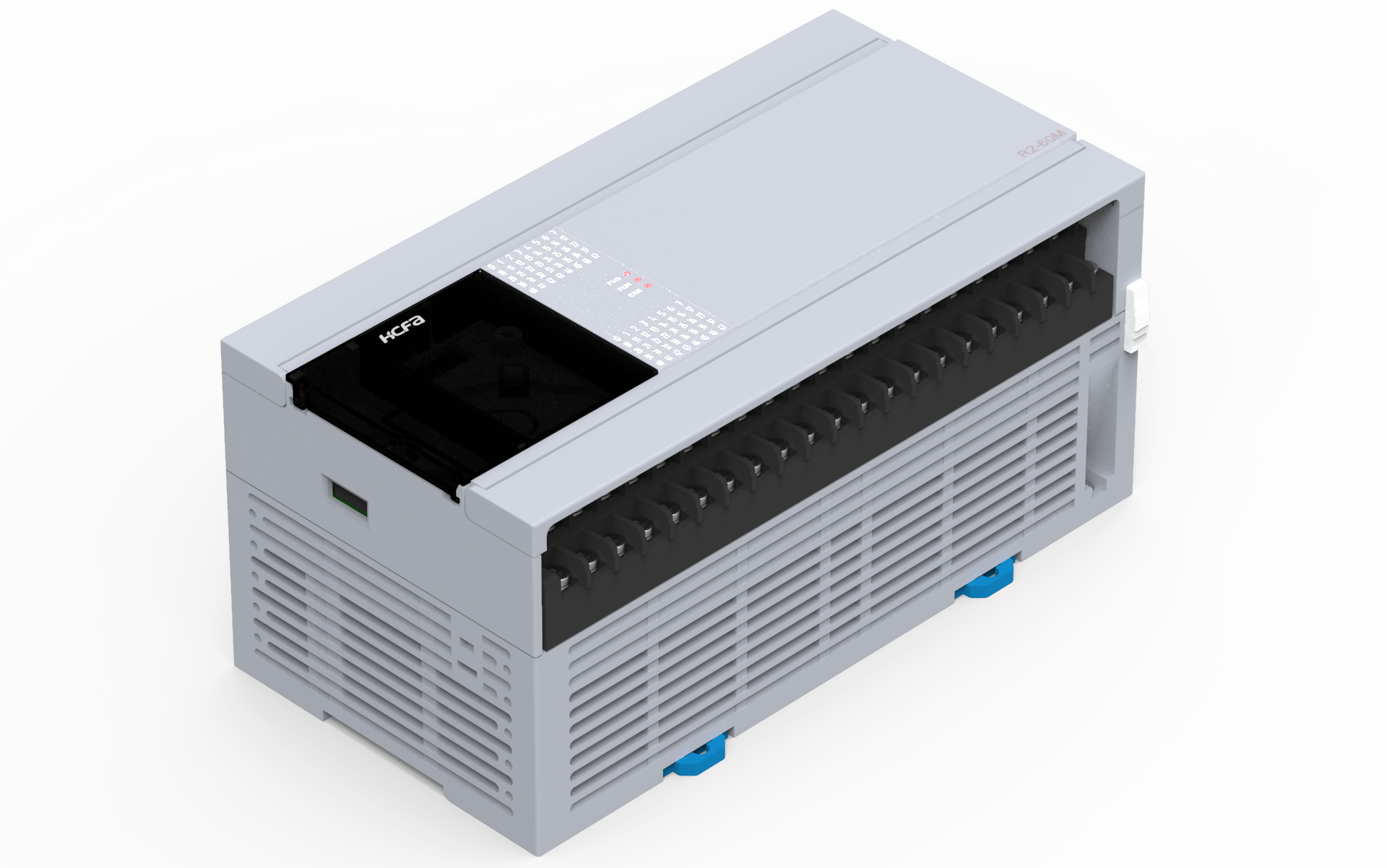

HCA2P General Expansion Micro Control
Controllable I/O：24-128points；
Main Unit I/O：24/40/60points；
More cost-effective：New appearance, CPU and power board design, cost performance improved by 10% ;
More reliable：New vibration resistance connector Greater transistor output 200V/ 1. 5A ;
Function improved：NPN & PNP compatible, Ethernet communication board, extension on right-side

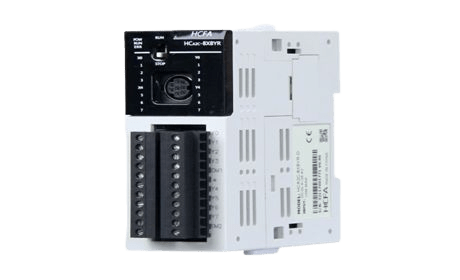

HCA2C Economic Extension Micro Control
Controllable I/O：16-128points；
Main Unit I/O：16points；
Built-in two communication ports RS422+RS422/ 485；
More reliable design；
Removable terminal block；
2 pulse train outputs (100kHz) for transistor unit (MT)

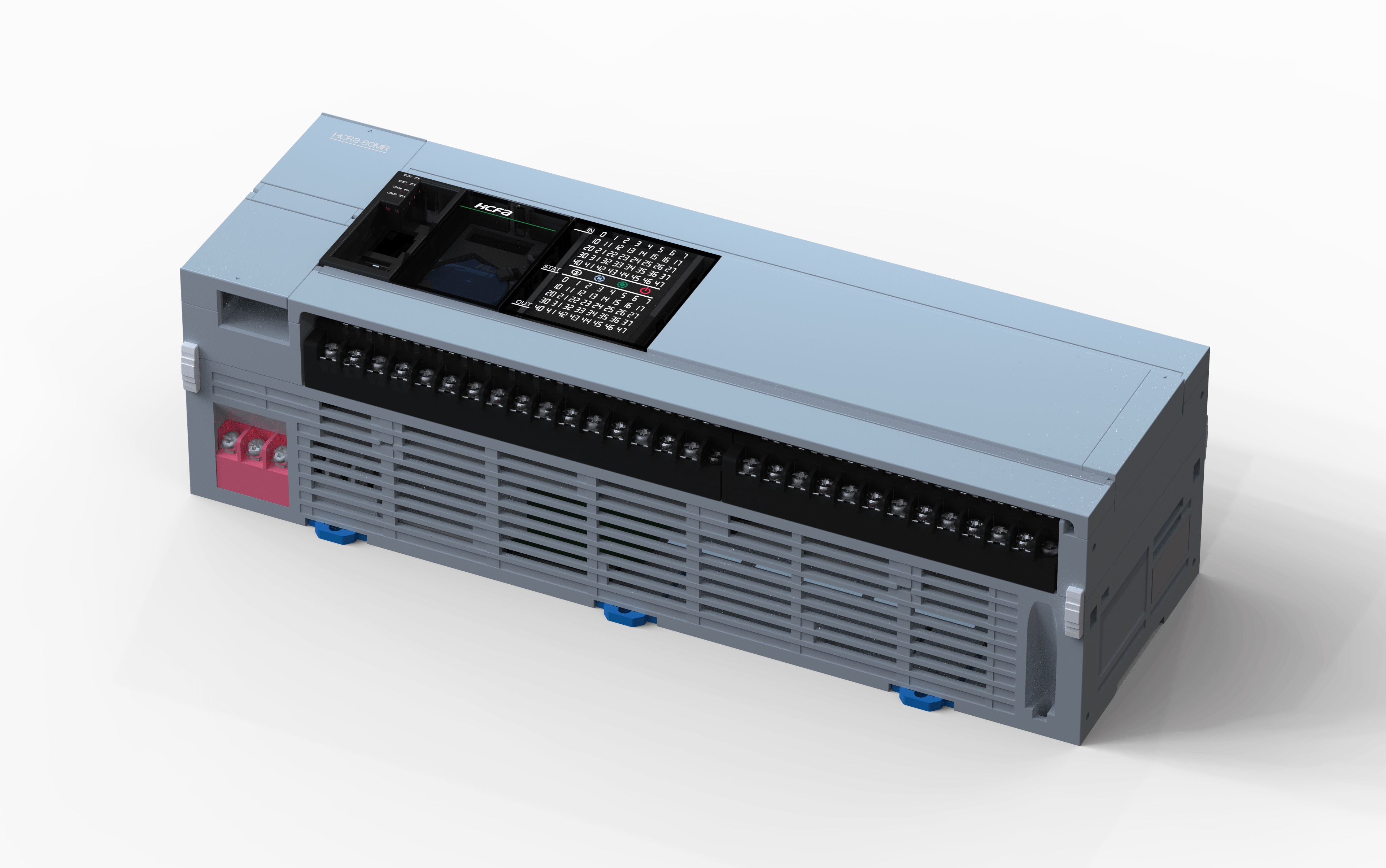

HCA8P High-speed High performance Extension
Controllable I/O：48-256points；
Main Unit I/O：48/64/80points；
More reliable design : More reliable built-in power supply, dielectric withstand voltage improved, more reliable thermal design, new vibration resistance connector, greater transistor output 200V/ 1.5A, 485 communication insulation and EFT 4KV, PCBA coating processing;
More user friendly : NPN&PNP input, newly-added reset switch, support downloading in power off state；
Modular design : Common CPU and power board design, support right-side extension blocks, newly-added left-side extension block, support Ethernet and analog block；
Safety design : Independent power supply (red terminal input) to prevent input point burn out caused by electric-shock and incorrect wiring, three segment security encryption function；
High performance : Newly-upgraded dual-core structure, 50ns basic instruction, Bus processing speed improved by 10 times>A8, built-in 64K memory, 8-ch 200K high-speed input + 4-ch 200K high-speed output, built-in 3 communication ports and newly-added EtherCAT block；
HCA8C High-speed and compact blocks
Controllable I/O：16-256points；
Main Unit I/O：16/32/64/96points；
New High speed and ultra-thin PLC, dual-core hardware acceleration processing ；
Ultra high-speed, more capacity, high performance, more Functions ；
Built-in six 100kHz & two 10kHz high speed counter ；
Built-in 2 Communication Ports (RS422 +RS485) ；
