X6 Series Drive Products
About X6 Series
Our Technology Help the Industry.
SV-X6E series servos, with response bandwidth 3.2kHz, has the higher response by the CPU & FPGA updates and the new algorithm developed by HCFA. At the same time, it can automatically eliminate micro-vibrations caused by resonance and vibrations caused by mechanical shakings, etc., to achieve high-precision positioning. its widely Used In process plant & Machine Tools.
Nexus Automation is Authorized Distributor of HCFA In India.
X6 Series
Model Name Description for Servo Motor
X6 Series Product Features

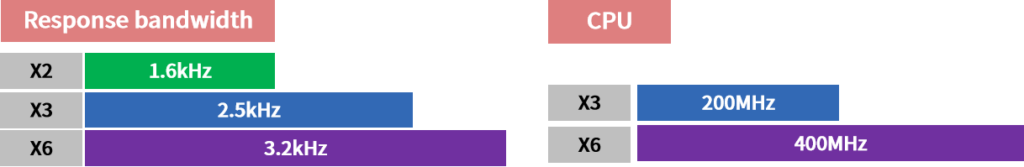

Response bandwidth 3.2KHz；
-The power expanded to 7.5KW；
-EtherCAT, Profinet, CANopen communication；
-DDR&DDL control；
-Full-closed control of the second encoder；
-Equipped with various filters and adjustment functions；
-Intelligent control；
-Built-in safety interface STO SIL4；
-Wireless connection with PC/mobile phone/tablet；
Applications
Engaging in high-precision OEM industry: Metal cutting, metal forming, laser cutting, glass processing, etc.;
Download
Name
Update Time
Catalog | 2022.12.17 |
