About X3E Series
Our Technology Help the Industry.
SV-X3E series servos, with response bandwidth 2.5kHz and LCD high-definition display, support EtherCAT, CANopen communication protocol. Also support position, speed and torque control modes, which can provide servo drives of high-response and high ease of use for high-precision OEM applications, Machine Tools & Process Plant.
Nexus Automation is Authorized Distributor of HCFA In India.
X3E Series
- Product Details
Product Catalog
- User Manual
- Design Drawing
- Software Download
Model Description For Servo Drives
Product Features
LCD display Compact type
Most beautiful appearance of industrial design
X3E Series
X3E Series

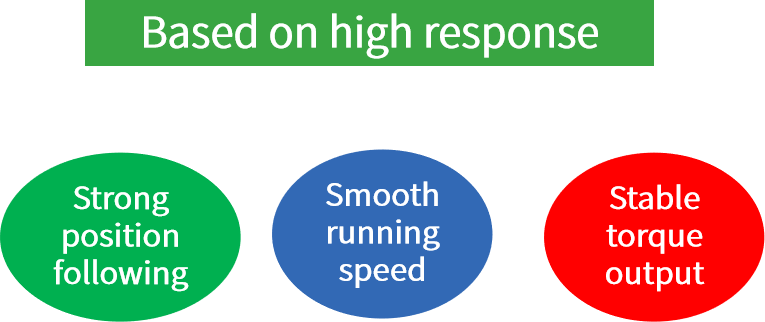

Response bandwidth 2.5kHz

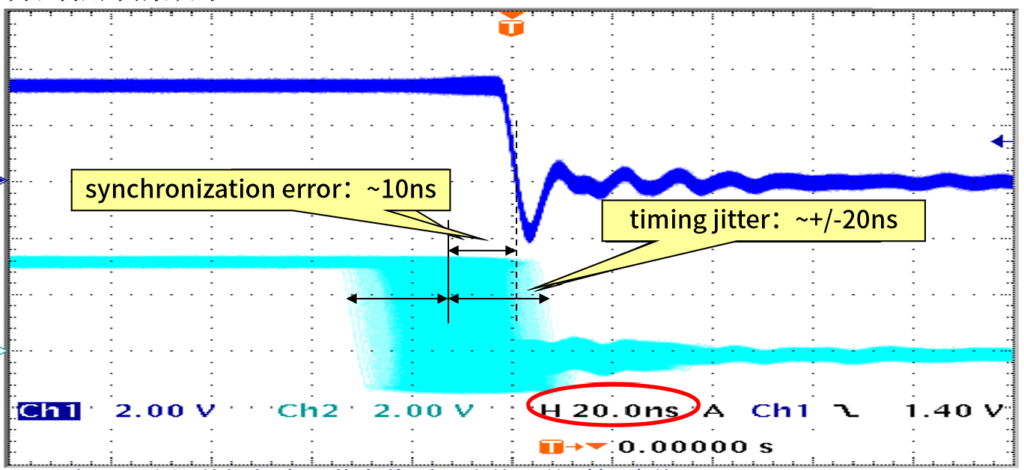

The highest synchronization accuracy
The highest accuracy can reach 10ns
Sync. error+-20ns sync. jitter
X3E Series
X3E Series
High ease of use

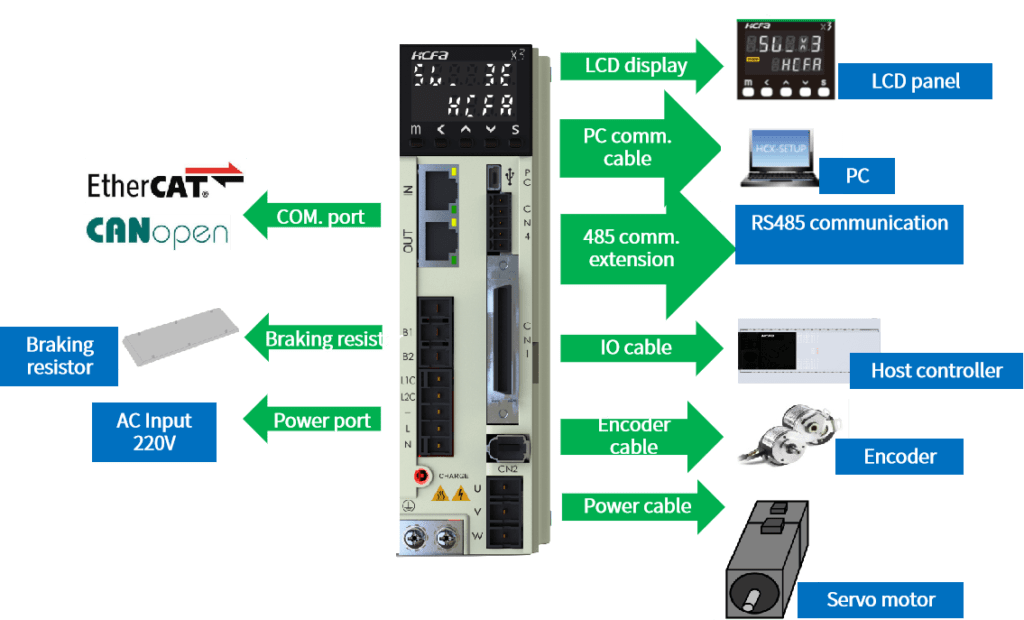

Rich communication protocol to achieve a wide range of brand compatibility
Complete position control mode for “fool” debugging;
Support external pulse, internal editable 16-segment positioning, with electronic gear and position filtering to form a complete position control;
Support position/speed , position/torque, speed/torque, and can be switched easily;
X3E Series
X3E Series

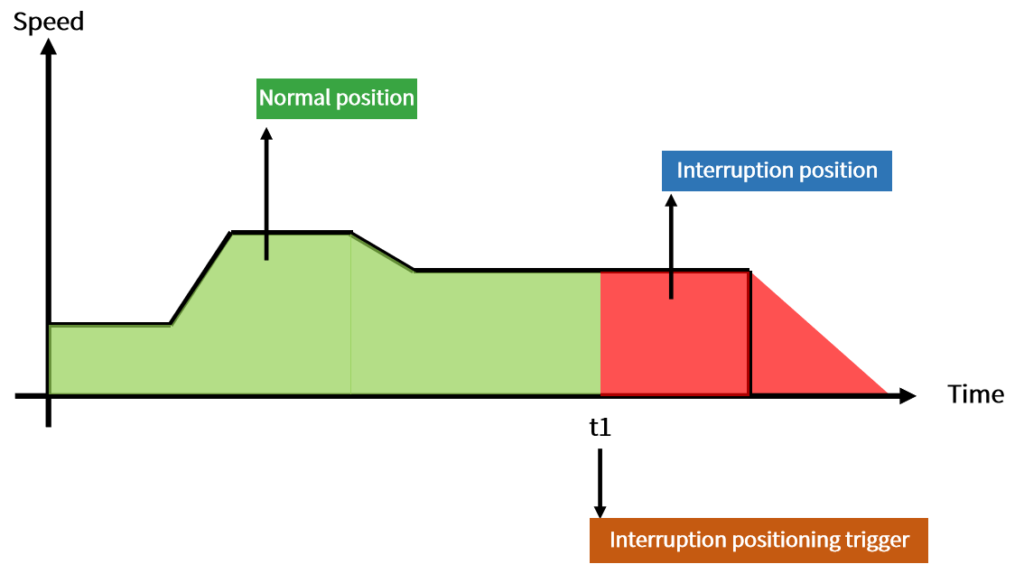

With real-time interruption positioning to meet special fast-positioning requirements;
The executing position instruction can be interrupted at any time to execute a specific position instruction;
Equipped with potential energy compensation function, it can effectively solve the vertical axis deviation caused by the brake timing sensitive situation
X3E Series
X3E Series
Flexible torque setting function to achieve various torque output requirements;

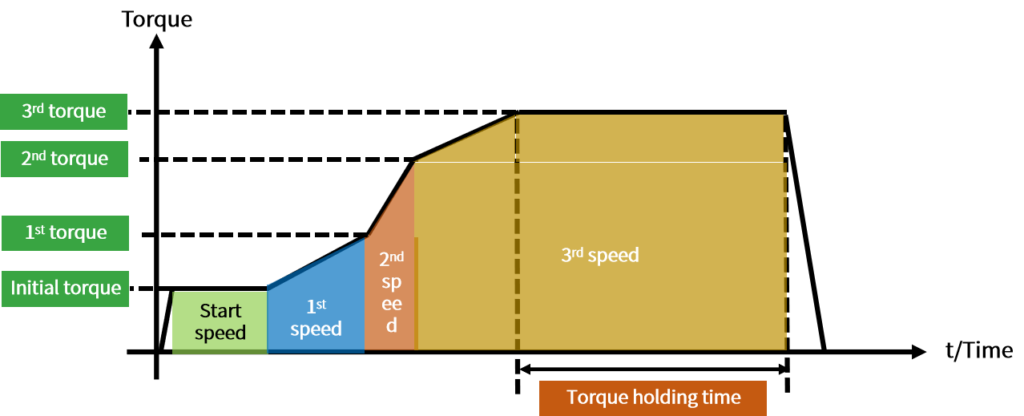

Support multi-stage torque setting, with multi-stage torque speed to achieve flexible torque output;
Complete idling rewind and number of laps to ensure the real-time determination at abnormal torque;

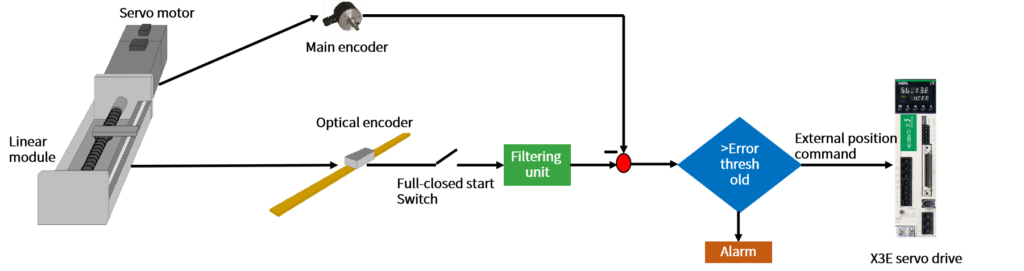

Support full-closed function
Based on CODESYS platform:
X3E Series
Rich filtering and suppression functions to achieve smoothing position trajectory

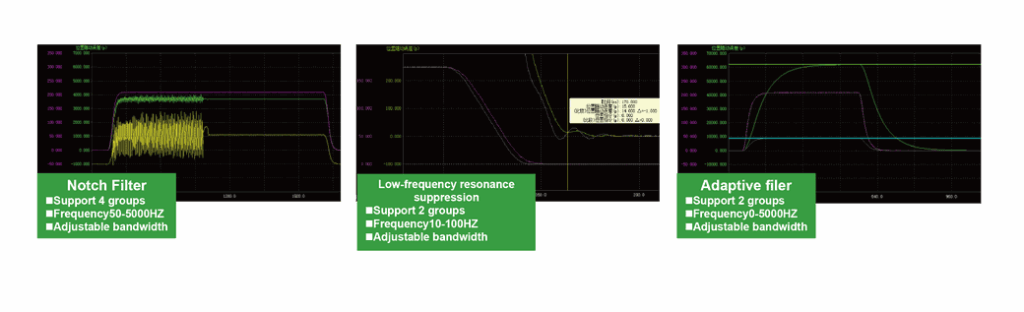

Support Notch Filter, low-frequency resonance suppression, adaptive filter ;

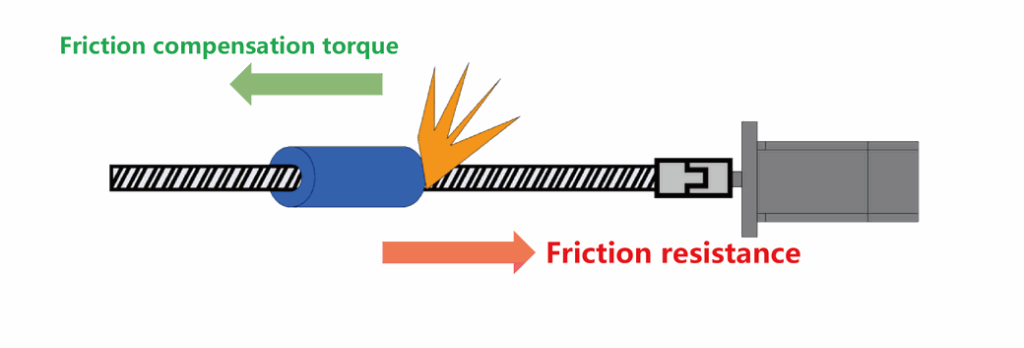

Support friction compensation function to effectively suppress friction torque
Support forward, reverse and viscous friction compensation, based on high-order friction filtering and speed interval algorithm;

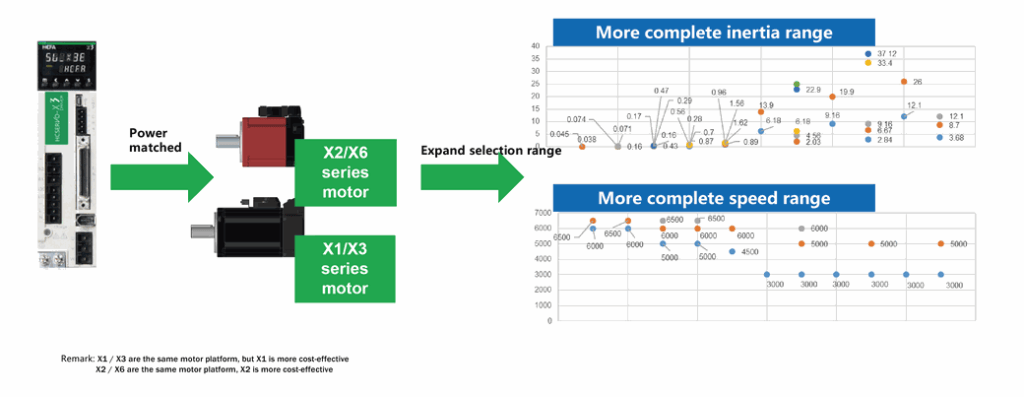

Complete motor identification code embedded and can be used with all HCFA servo motor platforms

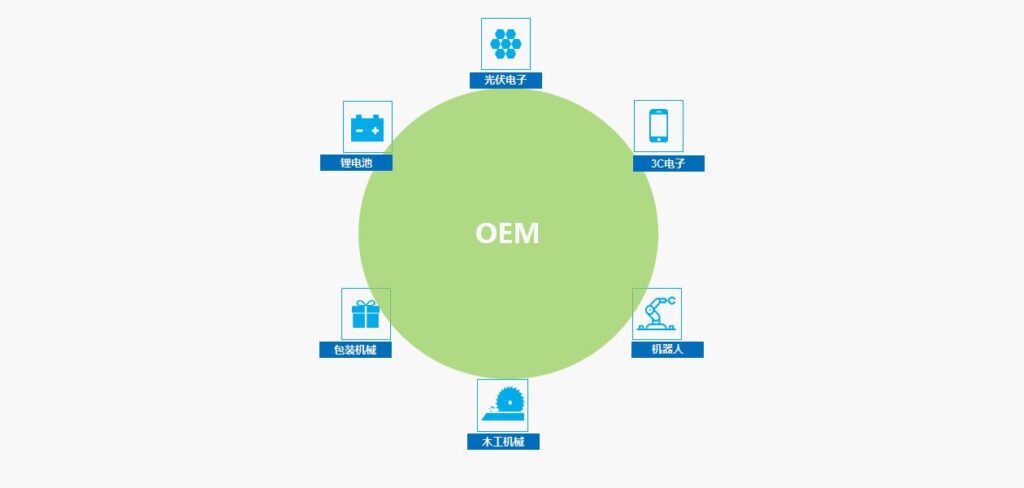

Applications
