Sensor Products HS-V Series
About HS-V
Our Technology Help the Industry.

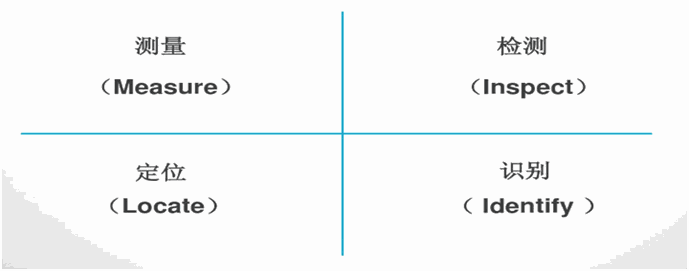

HS series smart cameras are embedded with QNX system, highly integrated image acquisition module, data processing module, image algorithm processing module, network communication module, and also equipped with Sharpling vision algorithm platform software, MVS vision cam-era setup software, which includes HS-V500 and HS-V1000 series, with 300,000-5 million pixel level. With self-developed image algorithm platform, it provides the overall solution of measurement, detection, positioning, and recognition for the industrial automation, machine Tools & Process Plant.
Nexus Automation is Authorized Distributor of HCFA In India.
HS-V
HS-V Product Information
HS-V500-MP130
HS：：Seriesname , Symbol ：HS，Type：HCFASmartCameras
V500：V500、V1000
MP：：Model name Pixel
MP30 300,000
MP13 1,300,000
MP20 2,000,000
MP33 3,300,000
MP50 5,000,000
MP20 2,000,000
MP20 2,000,000
MP20 2,000,000
HS series family products
-V500: 512M, support 5 million pixel level；
-V1000：Memory increased to 1G, can support higher pixel level；
HS series Product specifications
HS-V500-MP30： HS-V500-MP130：
SmartSens 1/2.7′ ‘CMOS sensor SmartSens 1/2.7’ ‘CMOS sensor
640x480Pixel,300,000 1280x1024Pixel,1,300,000
Frame frequency：60fps Frame frequency：60fps
Black /-white Black /-white
HS-V500-MP200： HS-V500-MP330：
SmartSens 1/2.7′ ‘CMOS sensor SmartSens 1/2.7’ ‘CMOS sensor
1920x1080Pixel,2,000,000 2304x1440Pixel，3,300,000
Frame frequency：25fps Frame frequency：15fps
Black /-white Black /-white
HS-V500-MP500：SmartSens 1/2.5′ ‘ CMOS sensor
2592x1944Pixel，5,000,000
Frame frequency：15fps
Black /-white
Features Of HS Family Products
Include–Gigabit network communication interface, 2 IO outputs, 1 IO input, power consumption <3w。

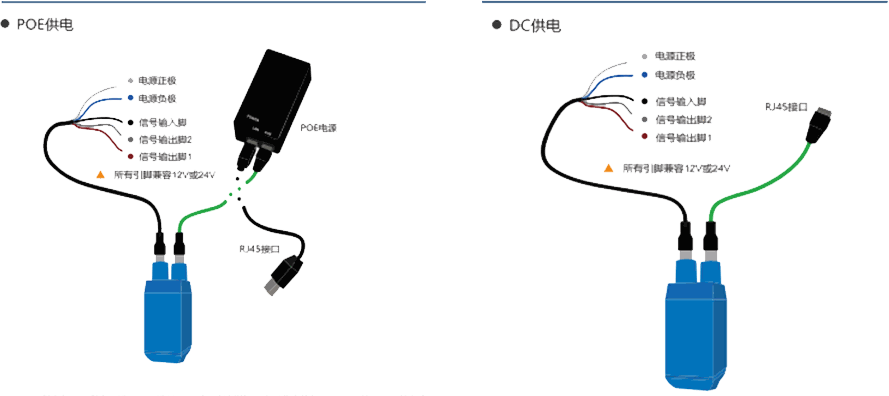

Multiple power supply supports–Support POE power supply, DC power supply；

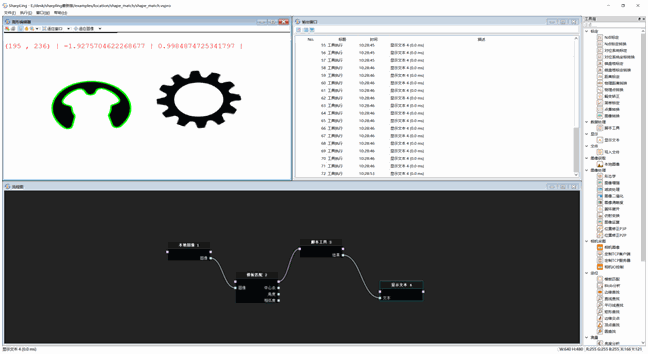

Setup software–Sharpling algorithm platform software, adopts a drag-and-drop user interface, and provides a rich algorithm function toolbox for users to drag and drop to form a flowchart solution；

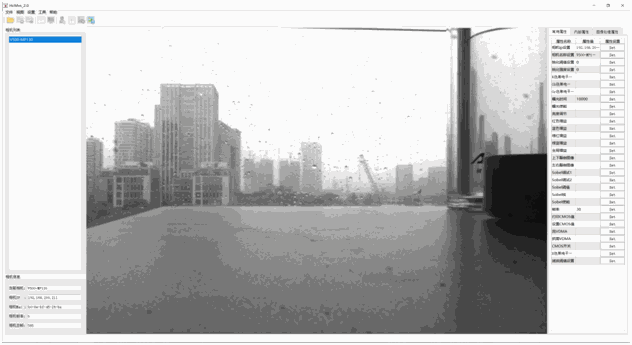

HC-MVS–camera setup software, can read and connect up to 32 smart cameras at a time,
adjust the camera image, attributes, parameters, etc.
Multiple communication modes
-Support TCP/UDP network transmission, IO data transmission, modbus protocol, serial data transmission, etc., can be connected to Industrial robots, PLC and other equipment.
Applications – Engaging In Sutomated Visual Inspection, and etc
