D3E Series Drive Products
About D3E-Series
Our Technology Help the Industry.
D3E series is the low-voltage servo driver with compact size, high communication compatibility, and high ease of use. It is a new servo driver designed for minimize and high precision servo applications, Machine Tools & Process Plant.
Nexus Automation is Authorized Distributor of HCFA In India.
D3E-Series

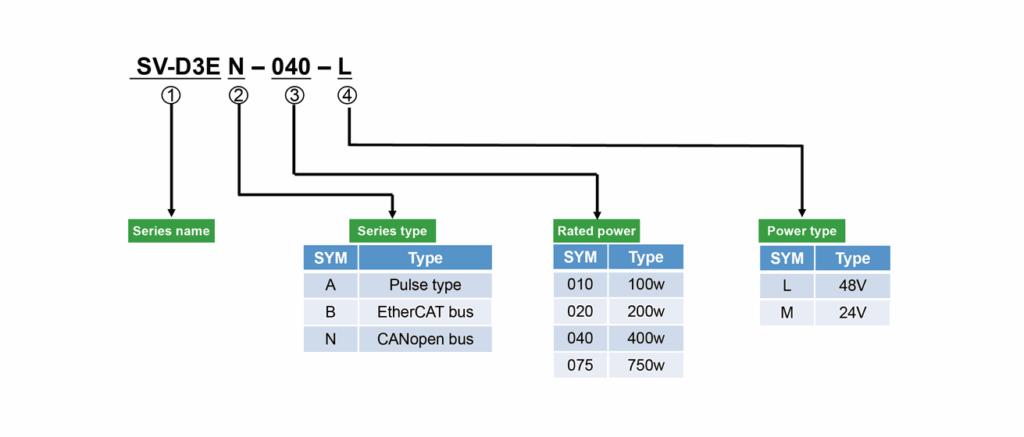

Model Name Description for Low-voltage Servo Drive
Product Overview
D3E Series Product Features

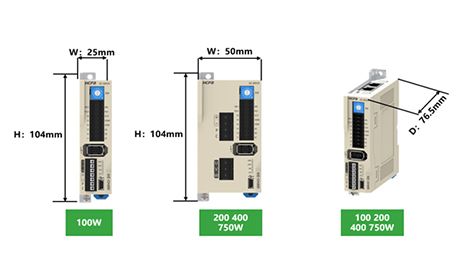

Compact Low-voltage Servo Drive
-Adhering to the aesthetic concept of HCFA industrial design, to create the industry’s ultra-miniature low-voltage servo drive；
-Thinnest to 25mm, lightest to 170g；
-Greatly reduce the installation space；

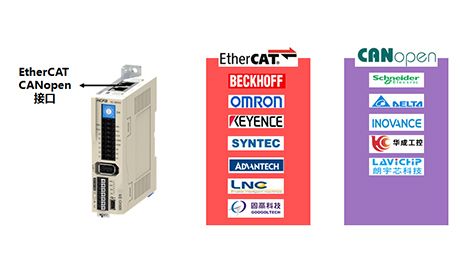

High Communication Compatibility
-Rich communication protocol to achieve a wide range of brand compatibility；
-Support EtherCAT, CANopen protocol and compatible with other main brands in the industry；
High Ease of Use

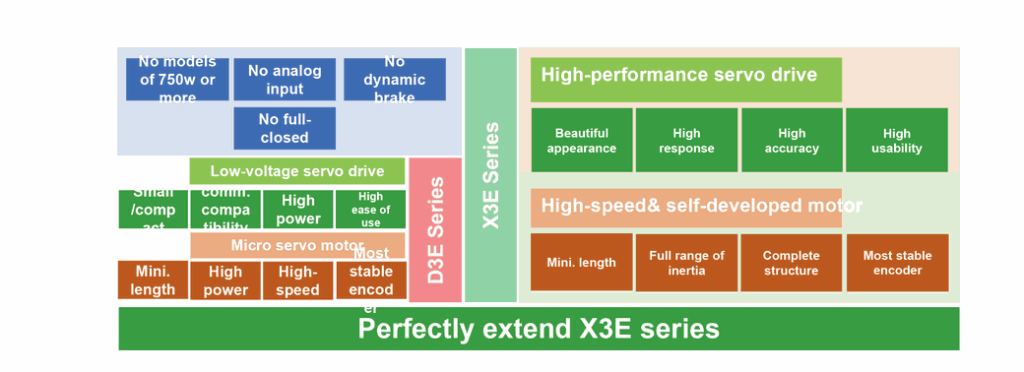

Own the whole control structure of X3E series to achieve the high-performance control ( excluding full-closed control, analog input, dynamic braking )
-Support 6 control modes: Position, speed, torque, position/speed, position/torque, speed/torque, can be switched easily；
-Support external pulse, internal editable 16-segment positioning, with electronic gear and position filtering to form a complete position control；
-Support speed observation, damping control, adaptive filtering, auto tuning etc.to ensure smooth motor control curve；

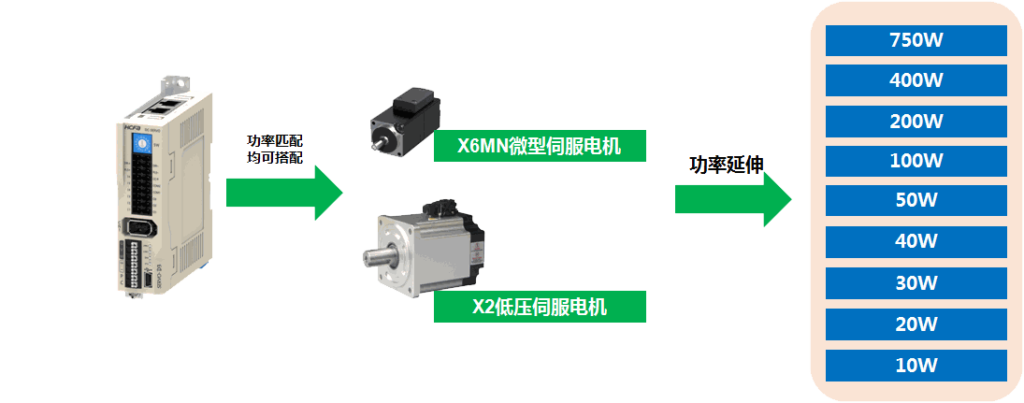

Robust motor identification code embedded Can match X6MN series (micro type) and X2 series(low-voltage) servo motor
-Extend the power range of the servo motor, the minimum power extends to 10W；

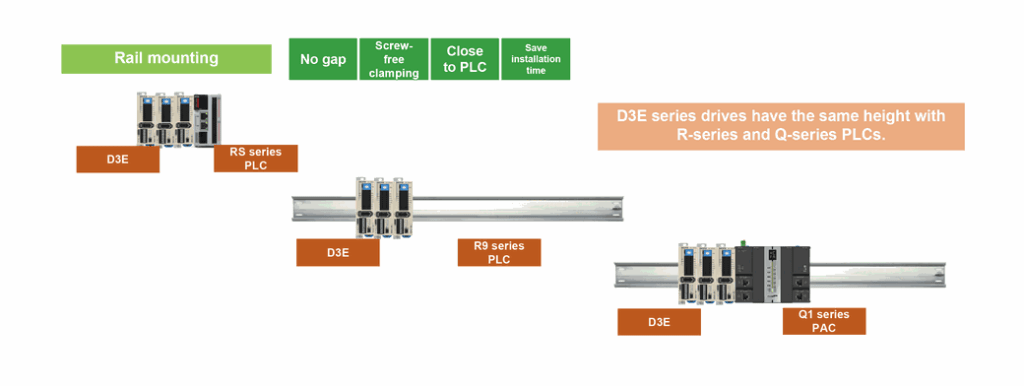

Flexible installation method
-Support rail mounting, horizontal installation, book-type installation；

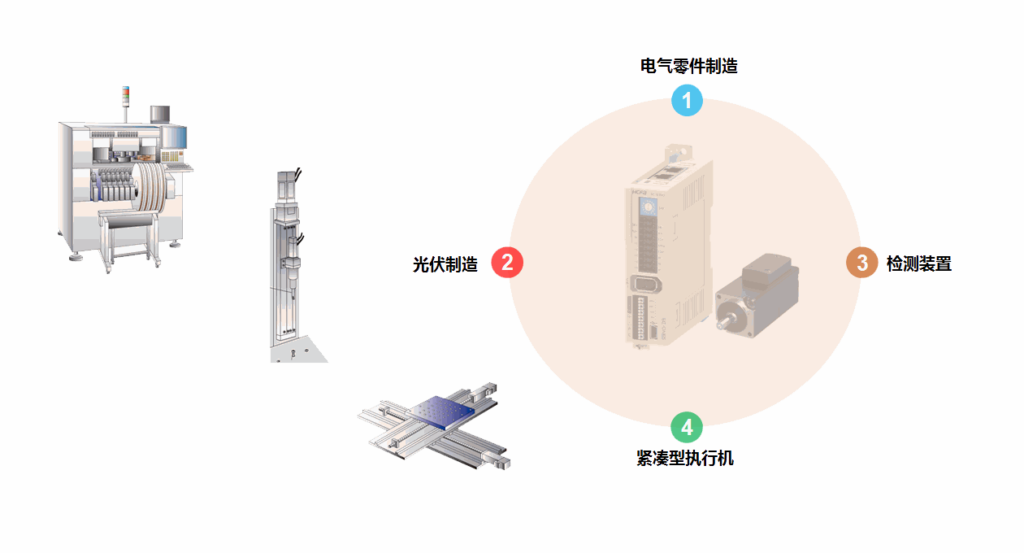

Engaging in small and high precision equipment applications
Download
Name
Update Time
Catalog | 2022.12.17 |
